Choosing a suitable connector cable

Your plug-in EV will have either a Type 1 or Type 2 inlet, so you'll need to make sure your cable has the equivalent connector. The chargepoint socket is always “universal” Type 2.

  1. Pick a suitable current rating that at least matches your car’s maximum charging rate. As a guide, 16A = approximately 3.6kW, 32A = approximately 7kW for single phase supply.
  2. A higher rated cable means you would be able to charge another car at the higher rate, so may be more future proofed.
  3. Choose an appropriate length.
  • EV Spiral Charging Cable Type 2 16 or 32 amp Electric Car Chargers
  • EV Spiral Charging Cable Type 2 16 or 32 amp Electric Car Chargers
  • EV Spiral Charging Cable Type 2 16 or 32 amp Electric Car Chargers
  • EV Spiral Charging Cable Type 2 16 or 32 amp Electric Car Chargers

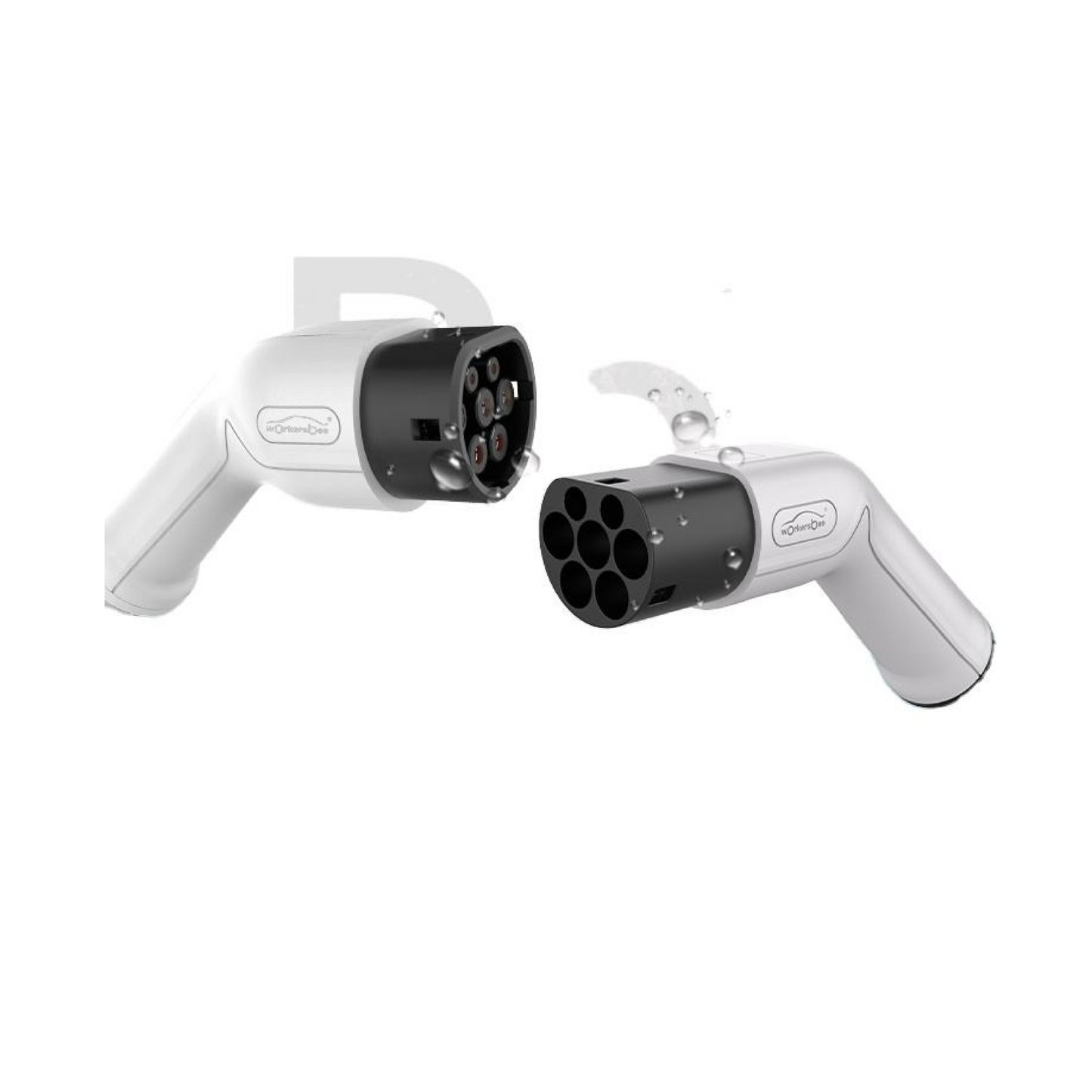

  • EV Spiral Charging Cable Type 2 16 or 32 amp Electric Car Chargers water resistance IP65
  • EV Spiral Charging Cable Type 2 16 or 32 amp Electric Car Chargers
1 6

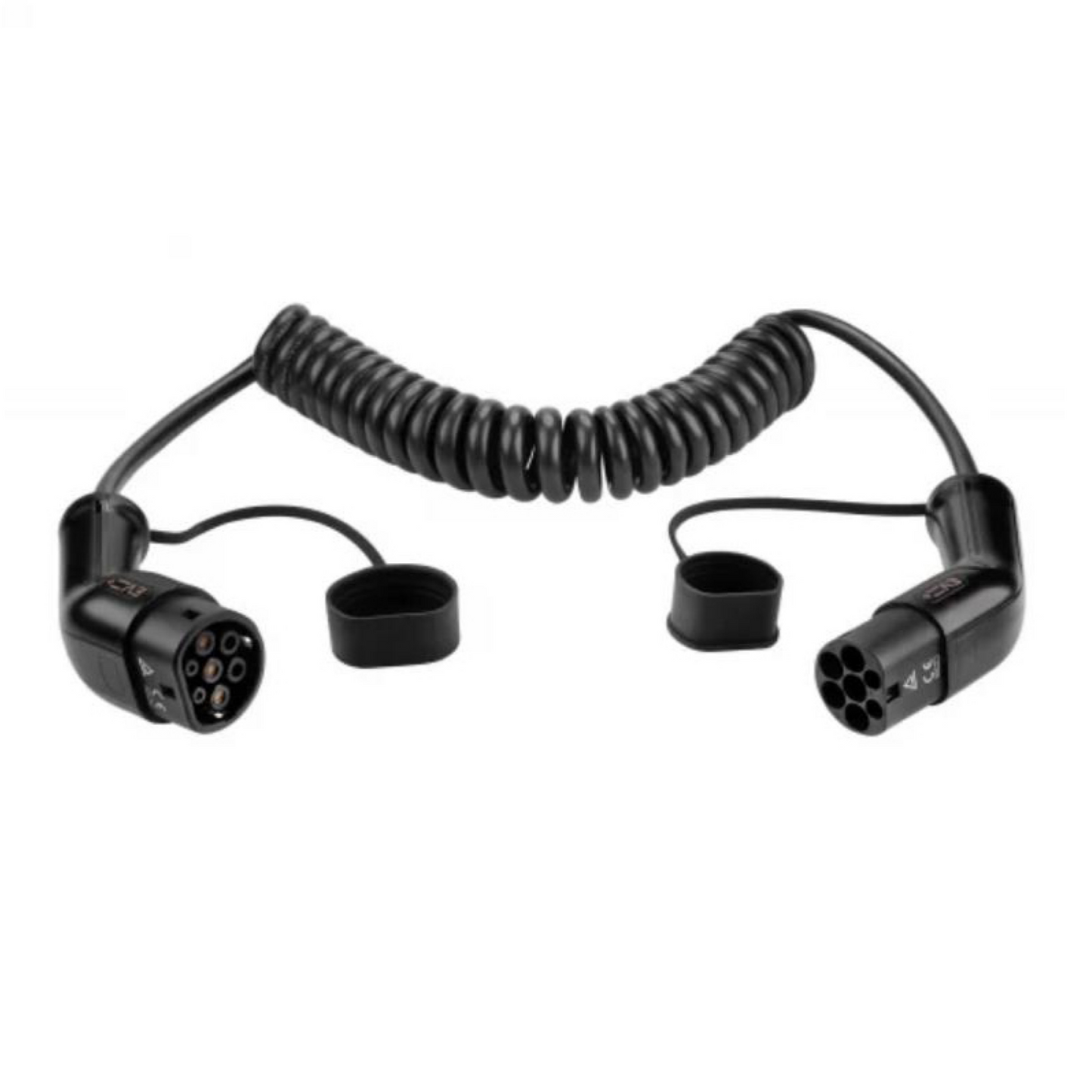

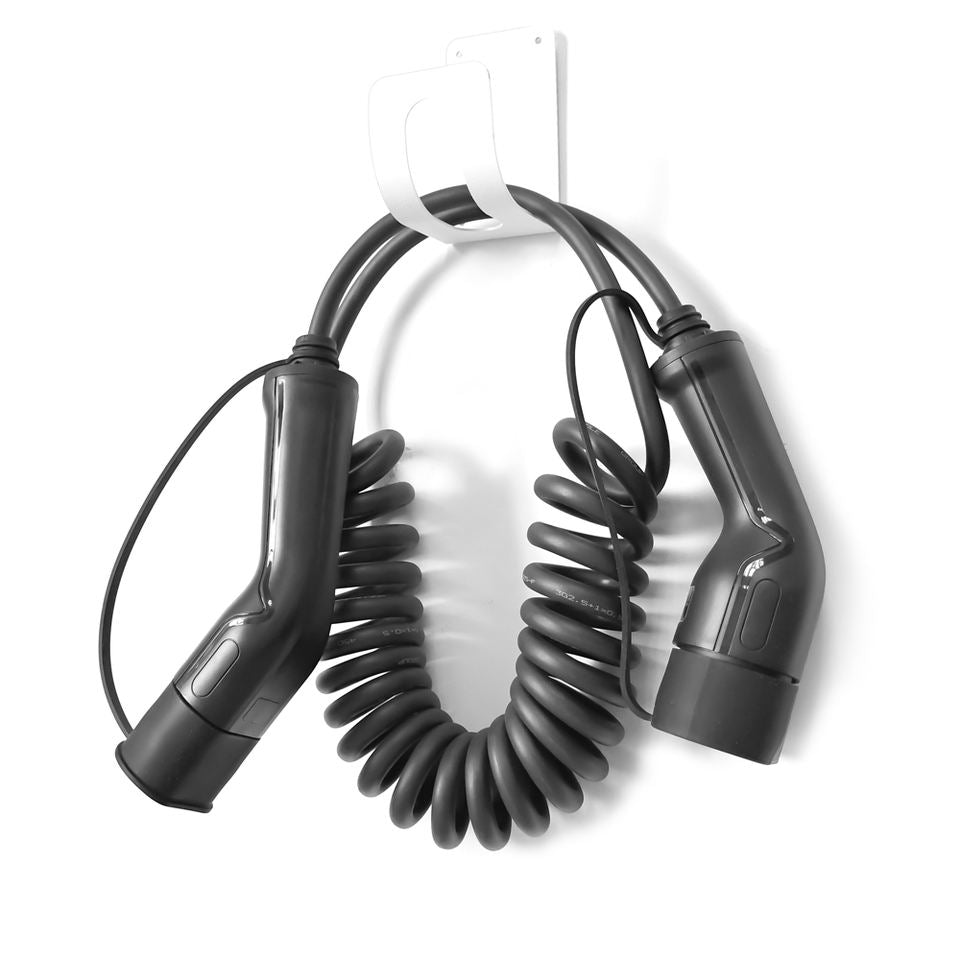

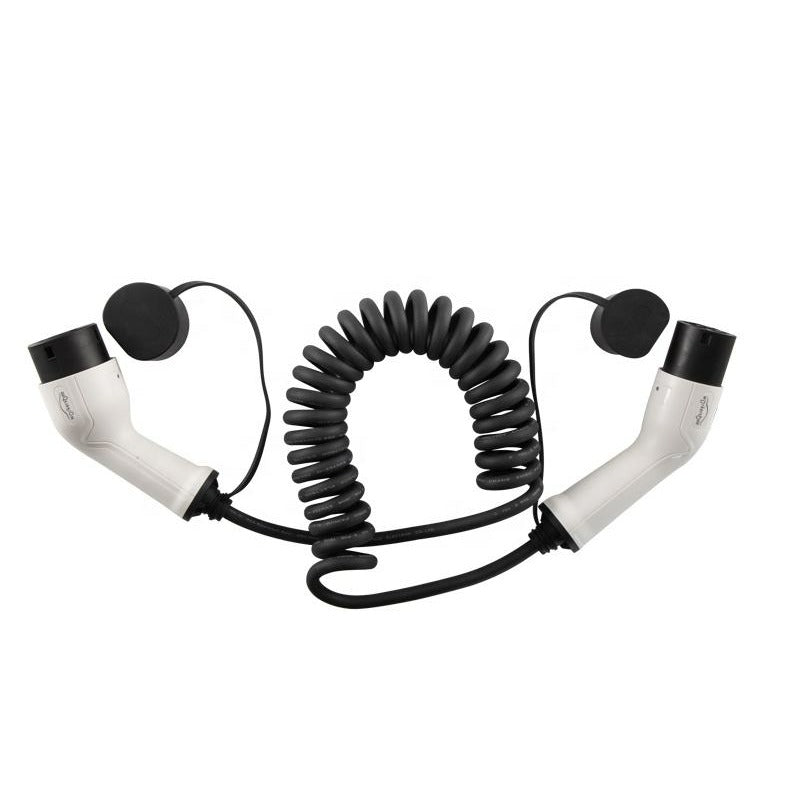

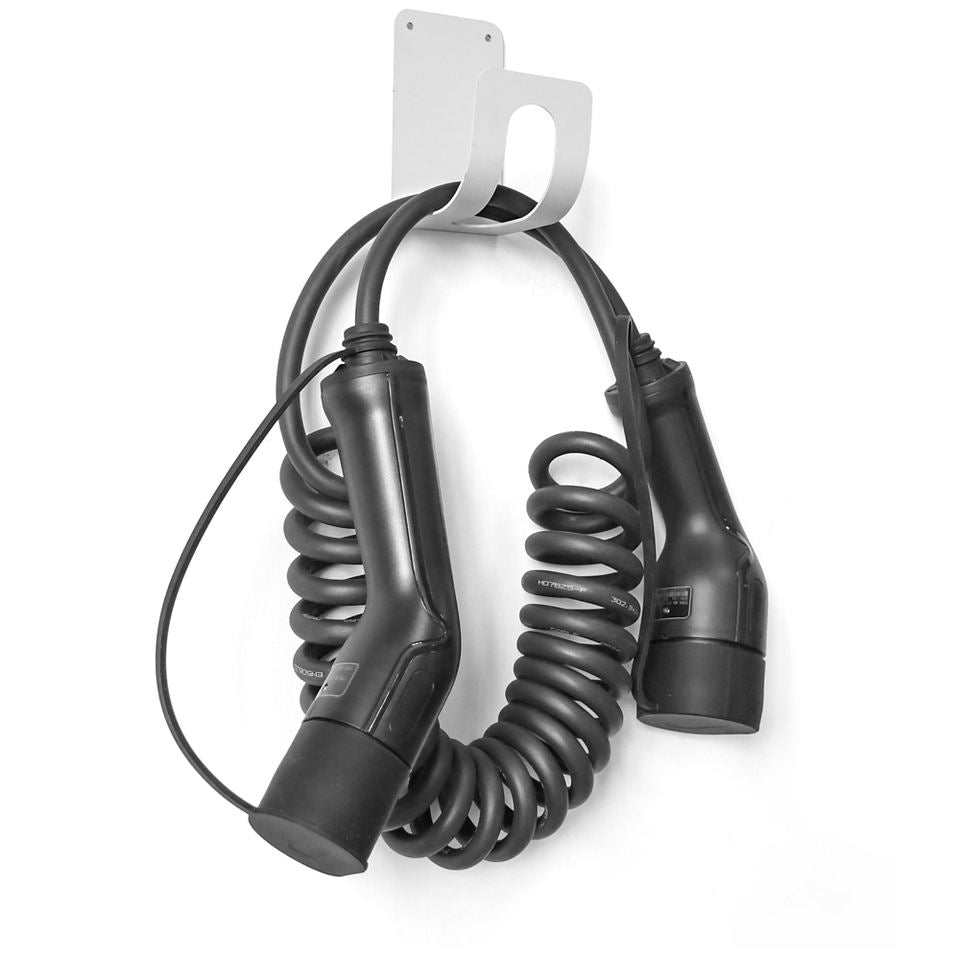

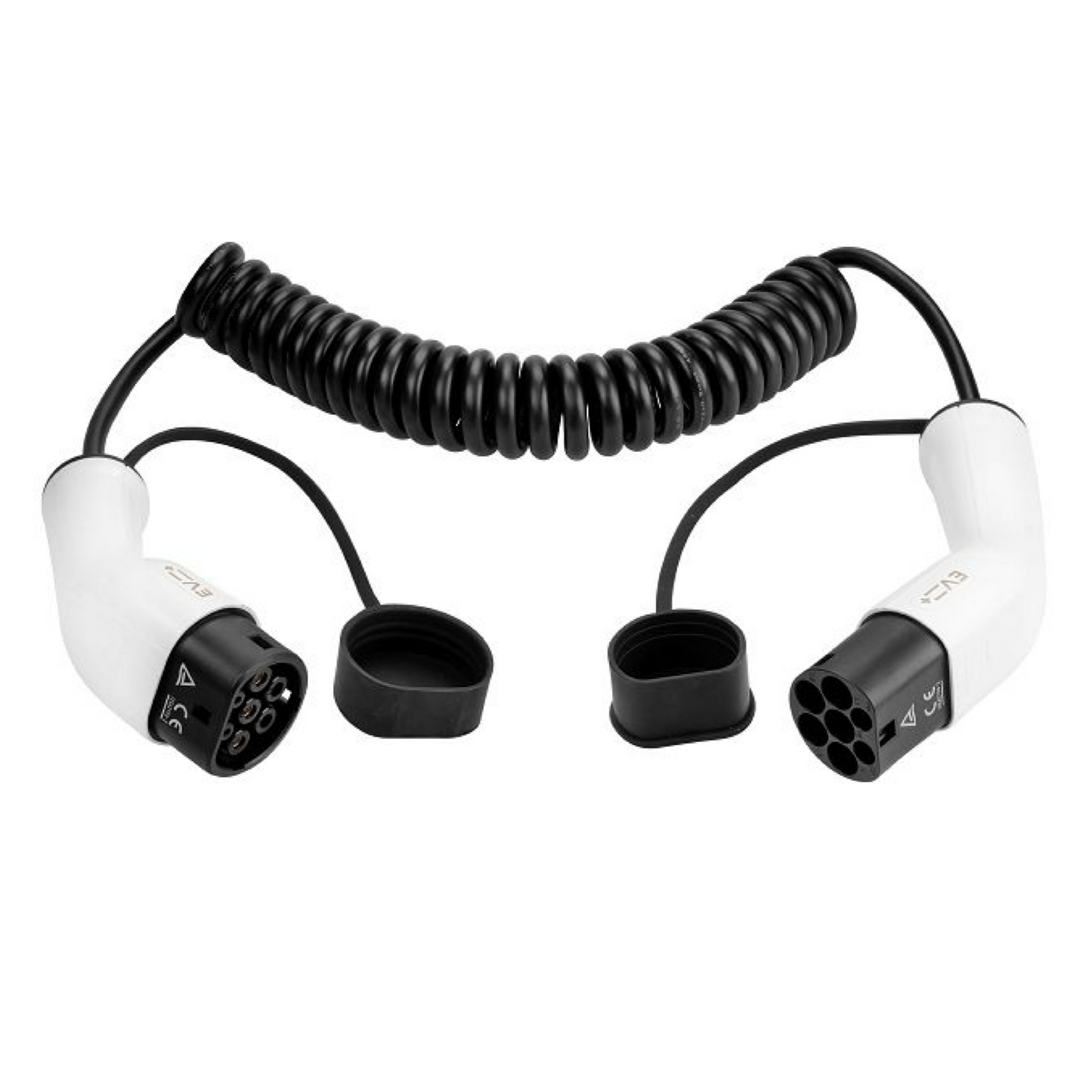

EV Spiral Charging Cable | Type 2 to Type 2 Connector 7.2kW | Single Phase | 16A or 32A

EV Spiral Charging Cable | Type 2 to Type 2 Connector 7.2kW | Single Phase | 16A or 32A

£149.95 GBP
£0.00 GBP £149.95 GBP
Sale Sold out
Inc. VAT ＆ Shipping

For charging any vehicle with a Type 2 inlet socket.

Choose either 16A for a charge rate of up to 3.6kW or 32A for a maximum charge rate of 7.2kW.

CE, TUV Certification.

Rated Current
Cable Length (Extended)
Colour

Tax Included.

View full details

  • 16A Cable

    Draws up to 3.6kW of power into the connected vehicle, providing approximately 1 mile of range for every 4 to 5 minutes of charging.

  • 32A Cable

    Draws up to 7.2kW of power into the connected vehicle, providing approximately 1 mile of range for every 2 to 3 minutes of charging.

1 2

About this product

With this cable, you can charge your electric vehicle that has a Type 2 port from a universal Type 2 Charging Station. Suitable for use at home, work or on public networks.

24 months manufacturer's warranty.

Specification

  • Connector: Type 2 to Type 2
  • Working Voltage: 250V
  • Rated Current: 16A / 32A (1-Phase0
  • Rated Power Output: 3.6kW (16A) | 7.2kW (32A)
  • Frequency: 50/60Hz
  • IP67 weatherproof
  • Cable Material: TPE/TPU
  • Operating Temperature: -30℃ to +50℃
  • Operating Humidity: 5% to 95%
  • Operating Altitude: < 2000m
  • UL94 V-0 Flame retardant
  • Impact resistant
  • Anti-UV

FAQs

If you have any questions about product specifications, delivery and returns, you can live chat with us or email us at support@stellacharge.com.

Delivery and Returns

Delivery

Package Contents: 1x Cable, User Guide, Travel Bag (subject to availability).

FREE UK Delivery (Tracked and Signed) with an estimated dispatch time of 5-10 days.

Read our shipping policy.

Returns

We have a 28-day return policy, which means you have 28 days from date of dispatch to change your mind and request a return. Your item must be in the same condition that you received it, unused, and in its original packaging. Read our refund policy here.
