About this product

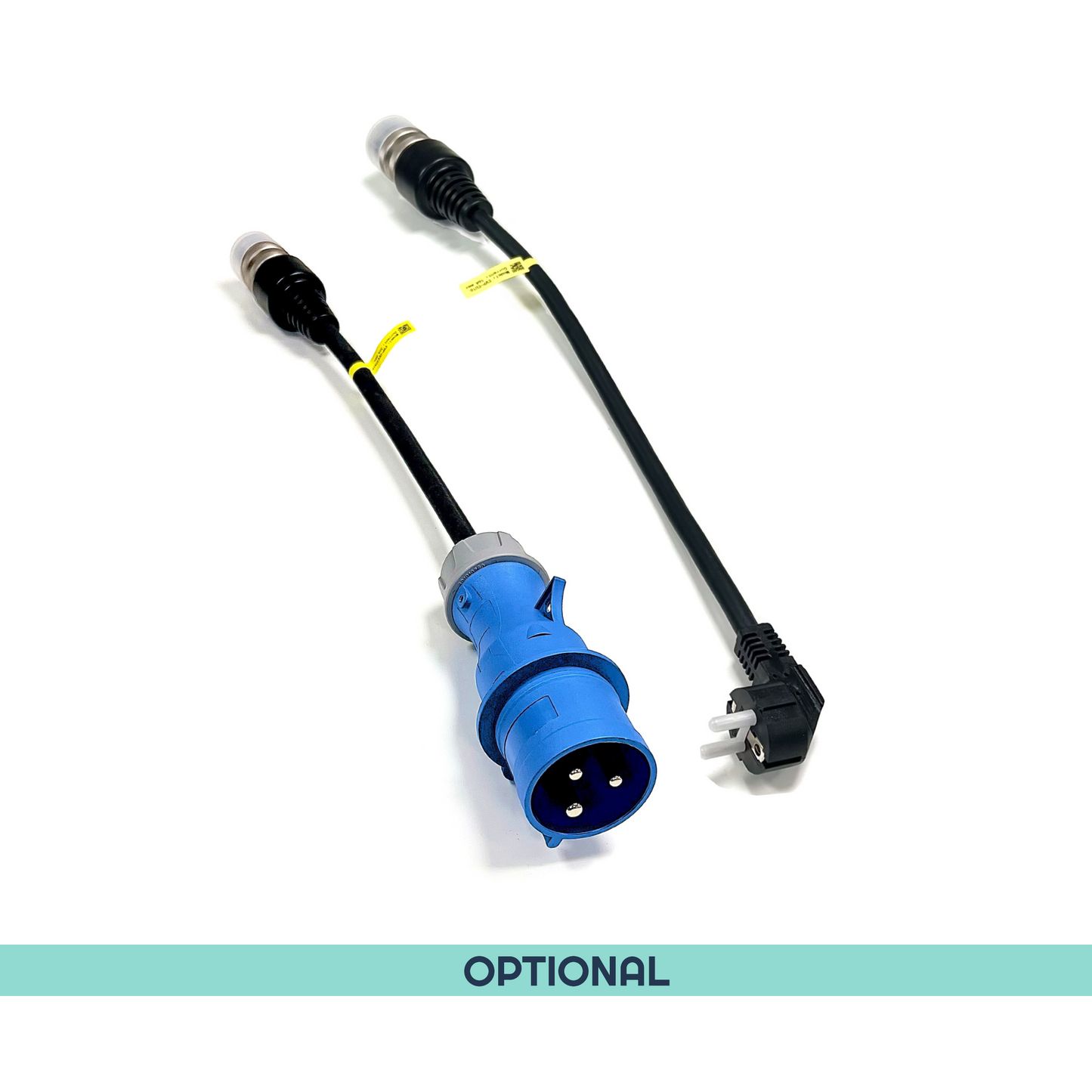

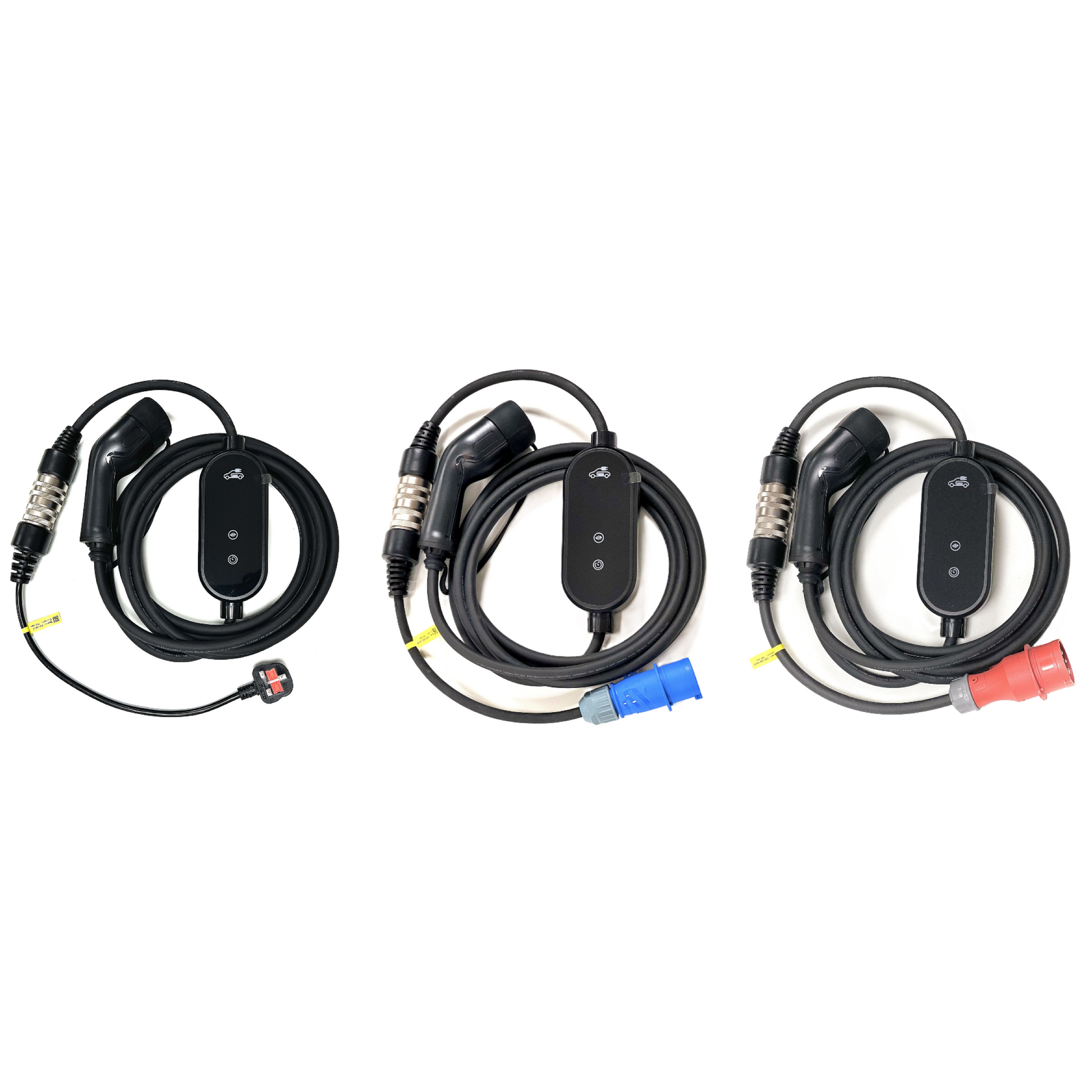

Adaptor Plug Options
| Features | Standard UK 3-Pin | Blue Commando CEE16 | *Blue Commando CEE32 | Red Commando CEE16/3 | Schuko CEE 7/7 |
|---|---|---|---|---|---|
| Maximum Current |
10/13A | 16A | 32A | 16A (3-Phase) | 16A |
| Maximum Voltage |
±230V | ±230V | ±230V | ±400V | ±230V |
| Maximum Power |
~3 kW | 3.6 kW | 7.4 kW | 11 kW | 3.6 kW |
| Use Cases | Home / Residential, Workplaces & Holiday Rentals. | Garages, Caravan Parks, Campsites, Workshops, Industrial / Commercial Premises (Depots, etc), Construction / Building Sites, Event Venues, Warehouses, Marinas, and Festivals. | Mainland Europe. | ||
*This charger has a maximum current rating of 16A for both standard single-phase and three-phase supplies. Any connected adaptor can deliver a maximum of 3.6 kW on a single-phase supply and 11 kW on a three-phase supply.
Specification
| Model | EVA11B |
| Compliance Standard | IEC 62196-2 |
| Maximum Output | 11kW (three-phase) | 3.6kW (single-phase) |
| IP Protection Grade (Control Box) | IP67 |
| IP Protection Grade (Adaptors) | IP44 |
| Working Temperature | -45℃ to +80℃ |
| Residual Current Device | Type B (30mA) with DC Fault Detection |
| EVSE Material | Polycarbonate, Tempered Glass & Gold-plated Connector Terminals |
| Cable Type | H07BZ5-F Industrial Grade |
| Cable Conductors | 5×6mm² (incl. PE) + 1×0.75 mm² (pilot core) |
| Built-In Fault Protection | Over/Under Voltage, Overload, Short Circuit, Leakage, Over Temperature & Lightning Protection |
| Overcurrent Protection | Up to 34A |
| Surge Protection | 4kV Impulse Withstand Voltage |
| Fault Detection | Automatic Fault Display, Automatic Voltage Monitoring and Trip Function, Protective Earth Monitoring |
| Certifications (EMC & Safety) | March 18-26, 2024 |
Collapsible content
Safety and care advice
Frequently Asked Questions
FAQs
How do I operate the charger?
For detailed instructions, please refer to the user guide included with your charger. As a general guide:
- First, attach the appropriate adaptor tail to the charger until it locks securely.
- Plug the charger into a power outlet.
- Use the dedicated tap buttons to adjust the current to your preferred level, and set the charging delay timer as needed.
- Finally, connect the Type 2 connector to your vehicle’s charging inlet to initiate charging.
Can I delay charging sessions to take advantage of off-peak rates?
Yes, you can delay charging sessions. Please refer to the delay timer instructions provided above for guidance.
What is the lowest charge rate the charger can support?
The lowest charge rate supported by the all-in-one charger is 6 amps (6A).
