Choosing a suitable connector cable

Your plug-in EV will have either a Type 1 or Type 2 inlet, so you'll need to make sure your cable has the equivalent connector. The chargepoint socket is always “universal” Type 2.

  1. Pick a suitable current rating that at least matches your car’s maximum charging rate. As a guide, 16A = approximately 3.6kW, 32A = approximately 7kW for single phase supply.
  2. A higher rated cable means you would be able to charge another car at the higher rate, so may be more future proofed.
  3. Choose an appropriate length.

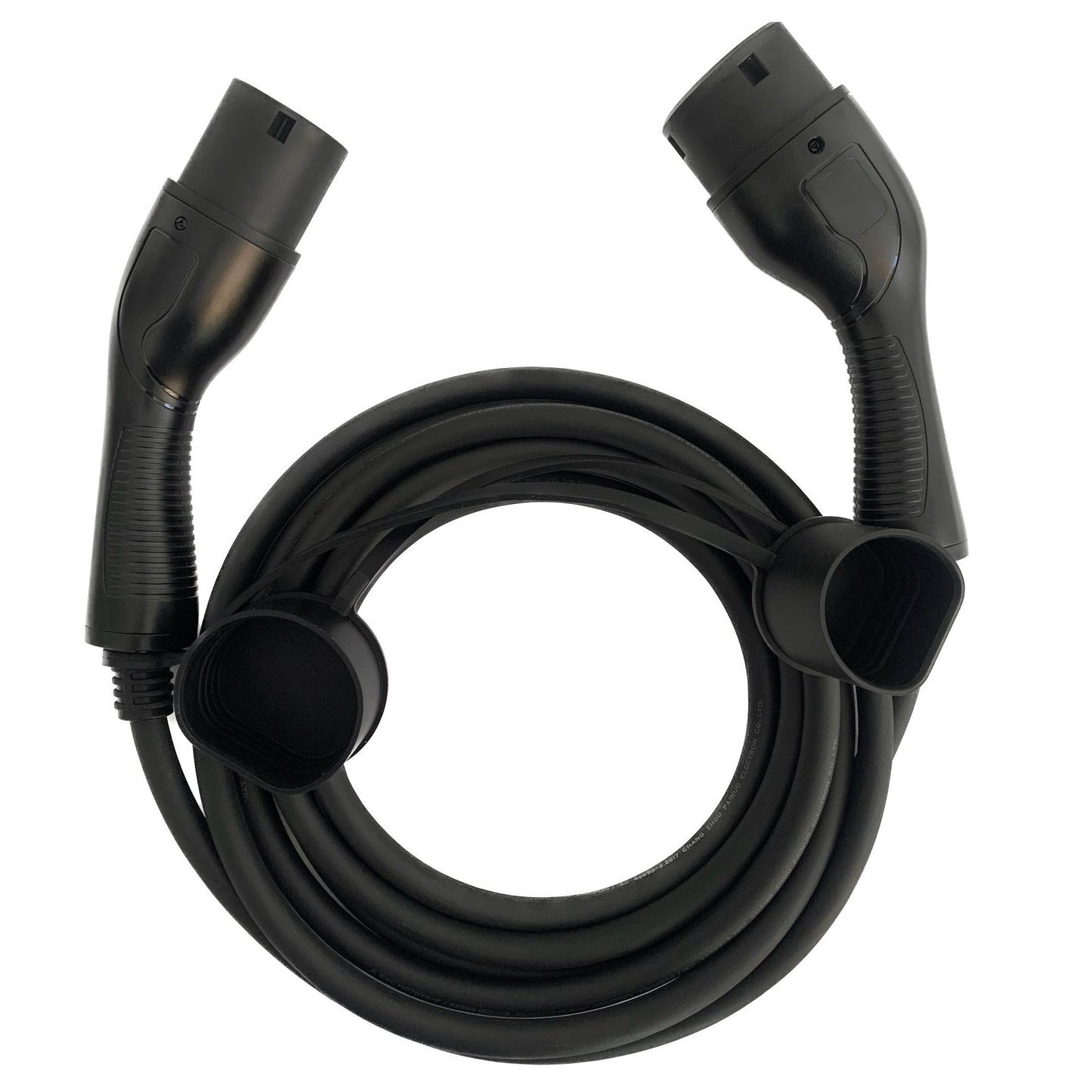

  • Bird’s eye view of Black Type 2 EV Charging Cable, Type 2 to Type 2 Connector 7.2kW | Single Phase | 32A

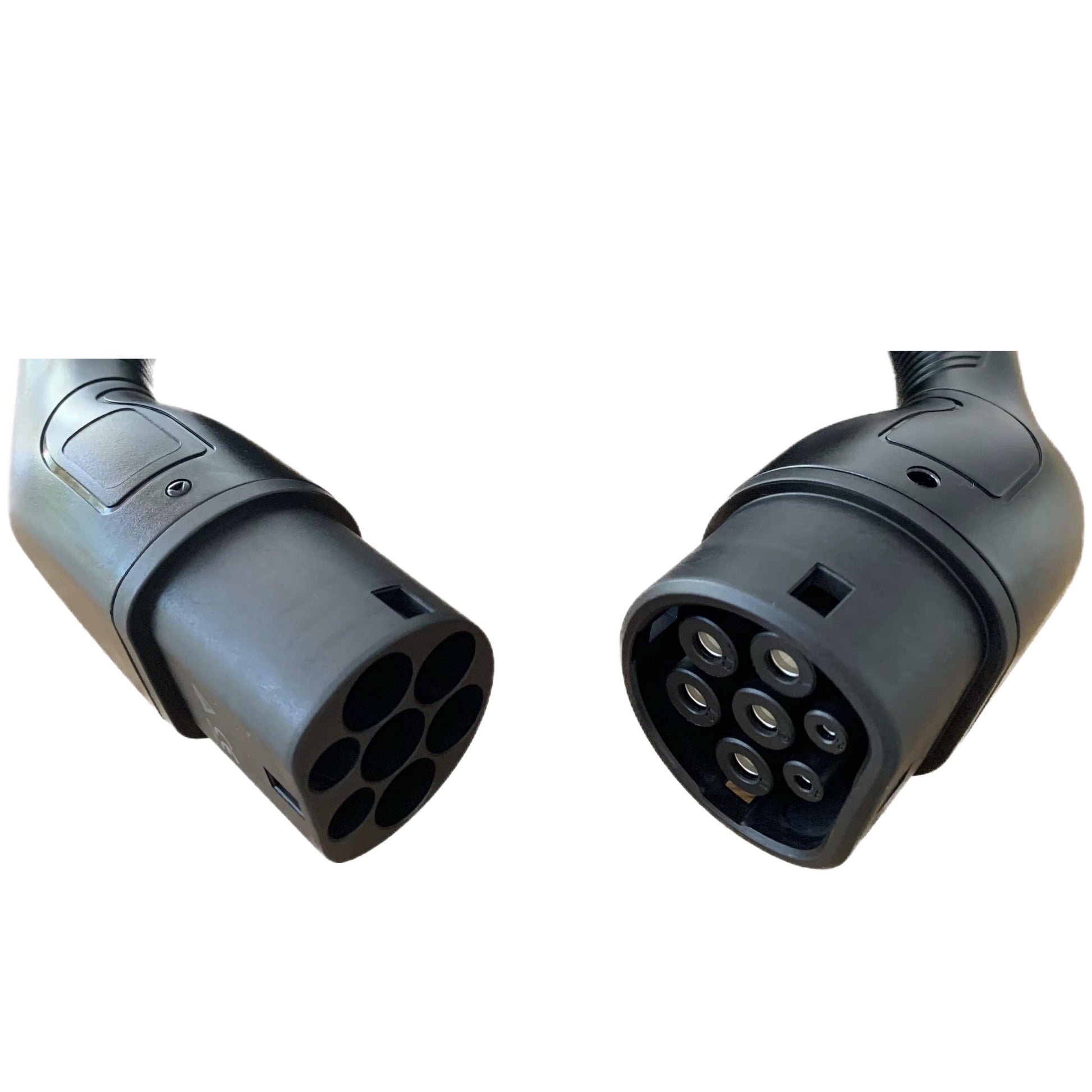

  • Connector ends of a Black Type 2 EV Charging Cable, Type 2 to Type 2 Connector 7.2kW | Single Phase | 32A

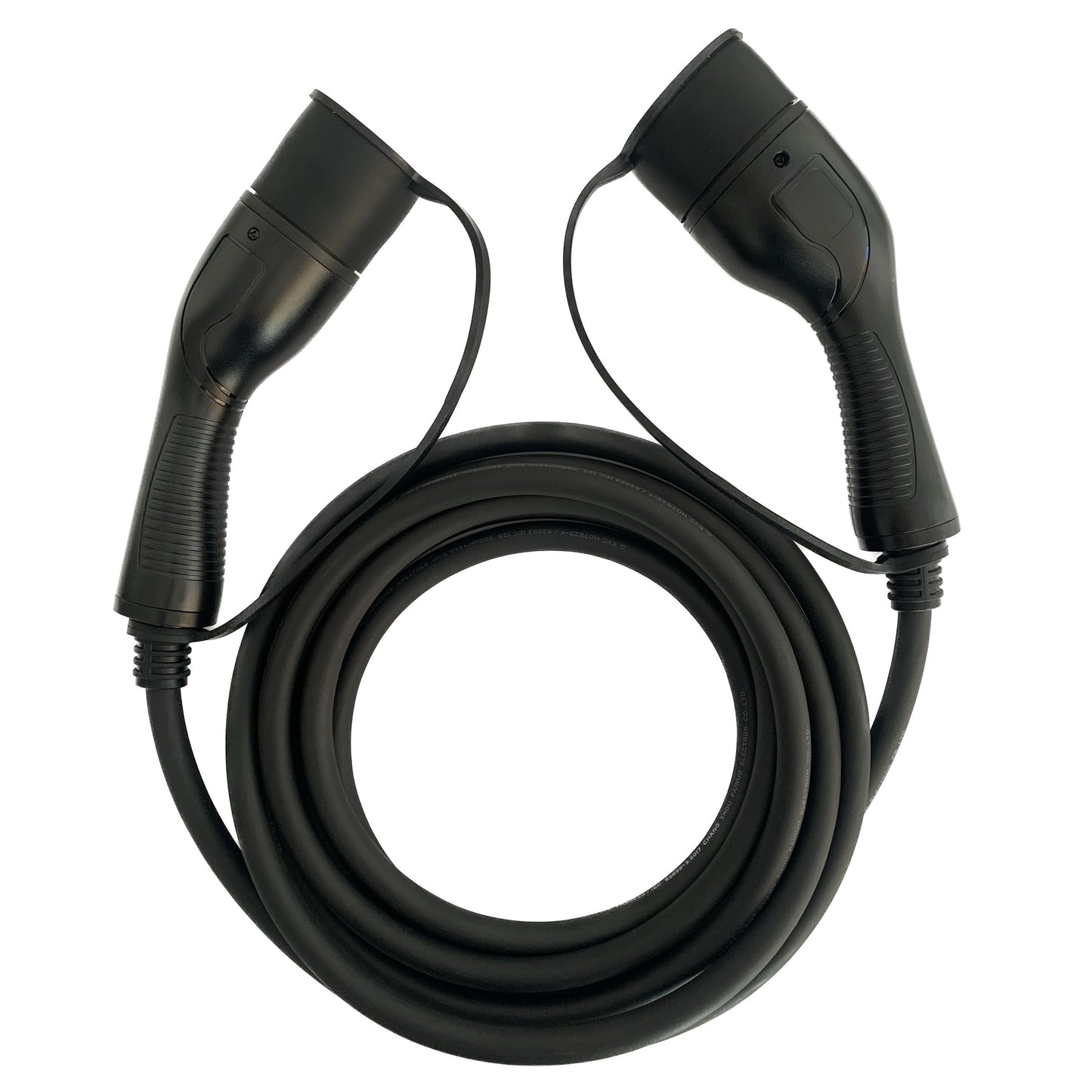

  • Bird’s eye view of Black Type 2 EV Charging Cable, Type 2 to Type 2 Connector 7.2kW | Single Phase | 32A
1 3

Type 2 EV Charging Cable, Type 2 to Type 2 Connector 7.2kW | Single Phase | 32A

Type 2 EV Charging Cable, Type 2 to Type 2 Connector 7.2kW | Single Phase | 32A

£109.95 GBP
£0.00 GBP £109.95 GBP
Sale Sold out
Inc. UK VAT ＆ FREE DELIVERY

For charging any vehicle that has a Type 2 port, providing a maximum charge rate of 7.2kW

Model: V1-32S W/B

IEC 62196-2 Standard

Rated Current
Cable Length
Colour

View full details

  • 16A Cable

    Draws up to 3.6kW of power into the connected vehicle, providing approximately 1 mile of range for every 4 to 5 minutes of charging.

  • 32A Cable

    Draws up to 7.2kW of power into the connected vehicle, providing approximately 1 mile of range for every 2 to 3 minutes of charging.

1 2

About this product

With this cable, you can charge your electric vehicle that has a Type 2 port from a universal Type 2 charging point. Suitable for use at home, work or on public networks.

Specification

  • Connector: Type 2 to Type 2
  • Rated Power Output: 7.2kW
  • Working Voltage: 250V (50Hz/60Hz)
  • Rated Current: 32A (1-Phase)
  • IP55 weatherproof
  • Operating Humidity: 5% to 95% (non-condensing)
  • Operating Temperature: -30°C to +50°C
  • Operating Altitude: <2000m
  • Cable: 3*6mm² + 0.75mm²
  • Coding resistor: 220Ω 0.5W
  • Fire retardant: 94-V0
  • Insulation resistance: >100M ohm (DC 500V)
  • Natural Cooling
  • Impact of external forces: qualify 1m drop or 2-ton vehicle run over
